Nano Cloaking Film
What is Cloaking Film?
Cloaking Technology is an architectural film for glass walls that obscures digital screens to outside view. It acts as a smart shield to ensure data privacy, while providing the peace of mind to collaborate freely in any working environment. This is a breakthrough that will unleash space design in the networked modern world. You have to see it to believe it.
When someone walks by this room,everthing else in the room looks completely normal.While privacy screen have existed for laptops, technology film screen couldn’t show any datum and information from outside.Technology could bring it to the architectrual scale.
During the meeting,the glass wall is more transparent ,and some datum could be aquired by others department or colleages. While some information need to keep private as to arrange in the company.

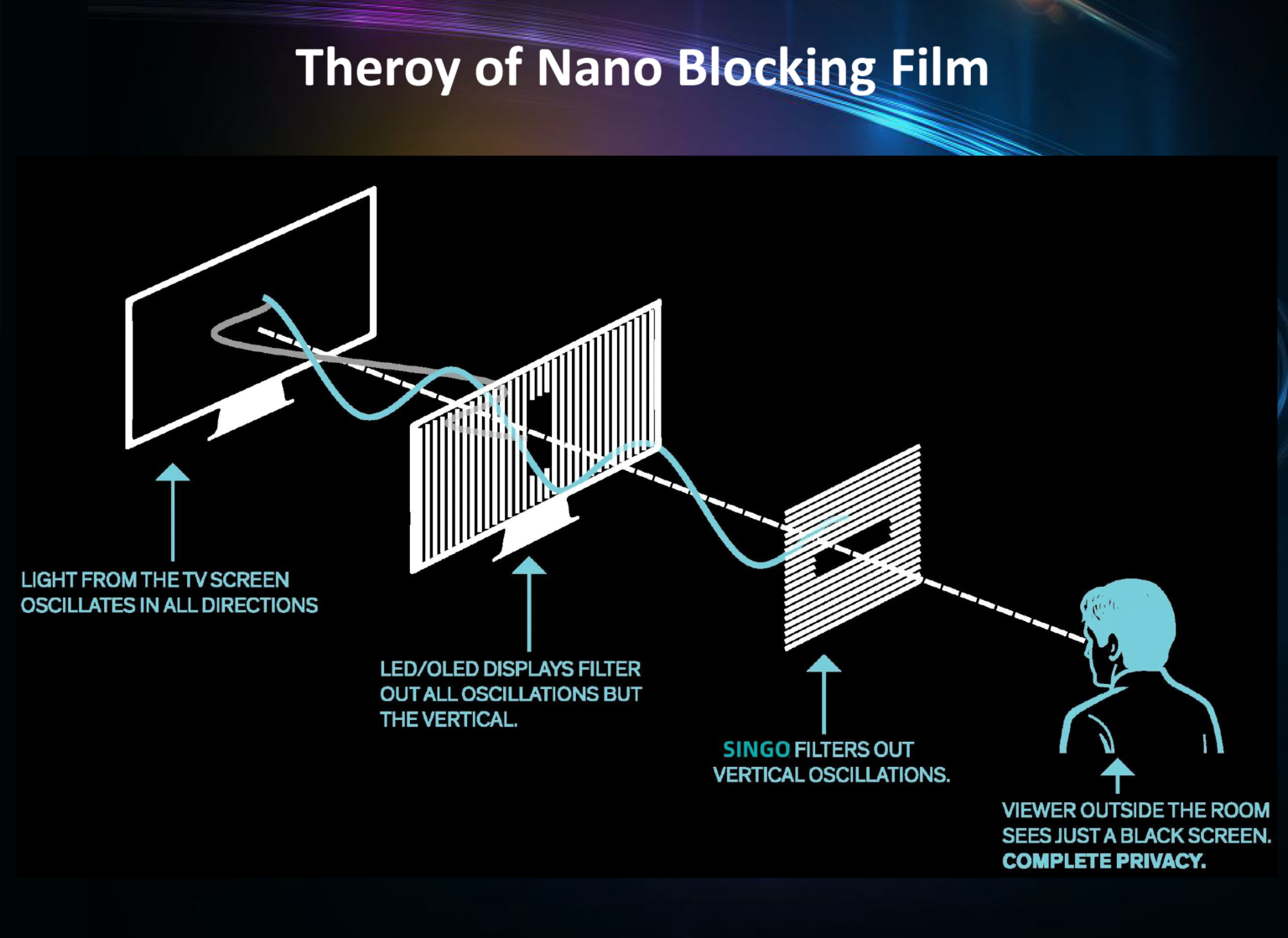

Cloaking Film's Work
Nano cloaking film parameter
| Product Name | Nano Cloaking Film | Surface Treatment | Nano Cloaking Film |
| Application | Architecture Glass Films | Orientation | 0 Degree (Standard Vertical) |
| Compatibility | LED backlight Liquid Crystal Display | Working Environment | -5¬+60℃ /90% RH |
| Length | 100 feet(30.5m) | Severe Test Environment | -30¬+80 ℃/90%RH/12OOH |
| Width | 36/48/54/56/60 inch | Storage Environment | 10¬30℃ /70%RH |
| Visible Light Transmittance | 42% | Packaging & Label | Composite Sealing/Sun&Moistrure Proof Warning |
| Blocking Efficiency | 99.95% | Effective Warranty | 5 Years |
| Effective Thickness | .007+/-.0007 inch | Test Report | *Reach svhc 263/RoHS |
| Color | Clear Grey | *VOC,CA 01350 | |
| Waterial | PET+Polyvinyl+Triacetate | *Flammability,ASTM E84,Class A | |
| Backing Adhesion | Acrylic Pressure-sensitive Adhesive | *Fire Safety,EN 13501-1 | |
| *Flammability,GB 8624-2012 |
Cloaking film in Projection Display

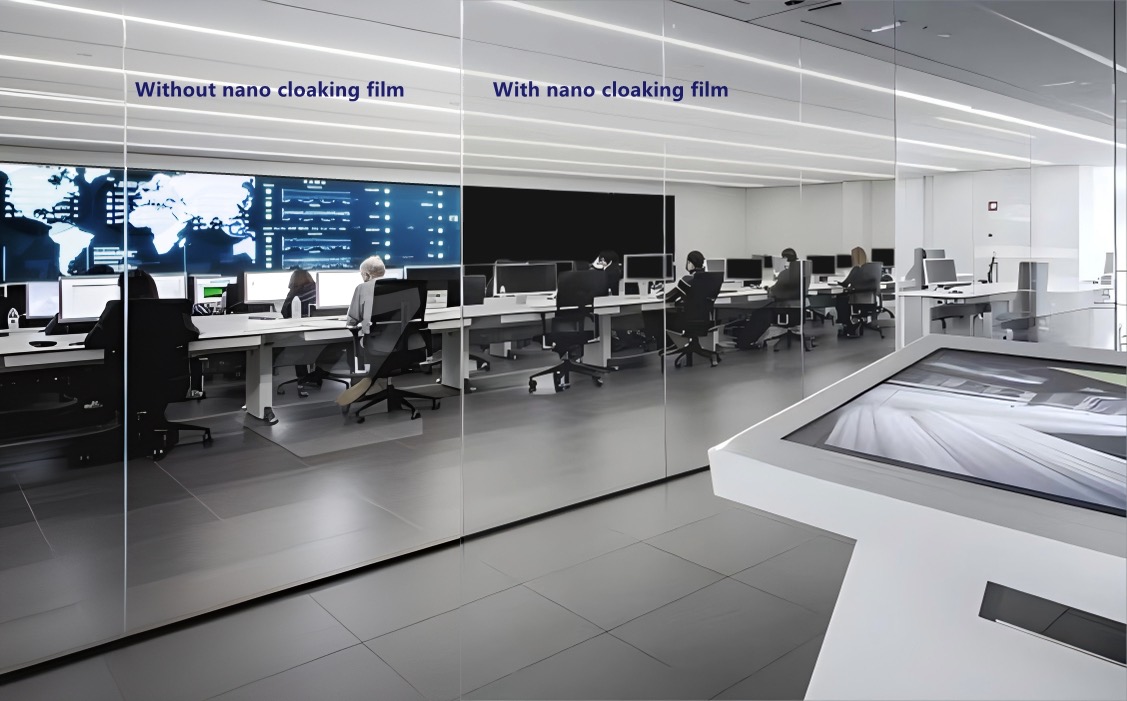

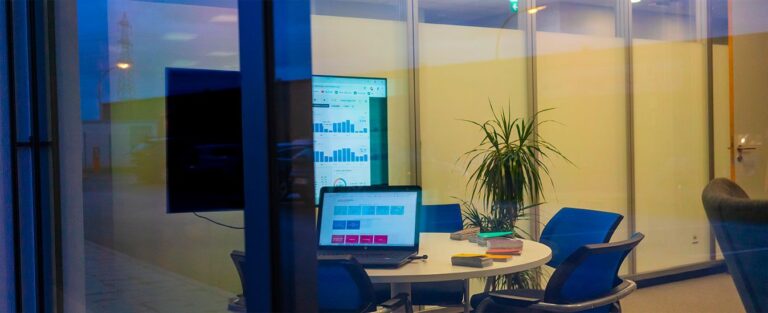

Cloaking film to protect your data in the office
Secure your screens in the office with adhesive cloaking film
Displays are a risk for exposure to your sensitive data. We’ve all had those awkward moments when we inadvertently see information or have access to another person’s data on a screen next to us.
Industrial espionage is still there! It is important to know that hackers are able to hack with sophisticated lines of code as well as in the simplest way: just by looking at your screen.
With the right security tools, you can keep your data safe and effectively protect your sensitive information from visual hacking.
In this post, we’ll tell you everything you need to know about this sophisticated technology. We’ll take you through answers to the following questions:
How does the Cloaking work?
What does it look like?
What industries use Cloaking film?
How much does it cost to install?
How is it installed?
Is it worth it?
What else should I know about Cloaking Film Technology?

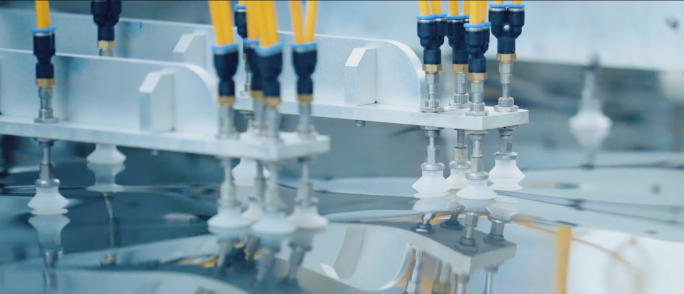

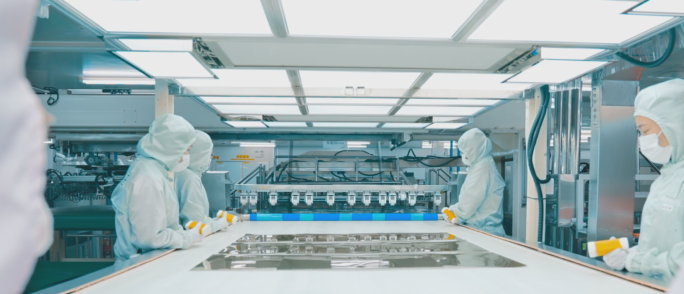

Nano Cloaking Film Factory Galleries
Nano Cloaking Film Checking

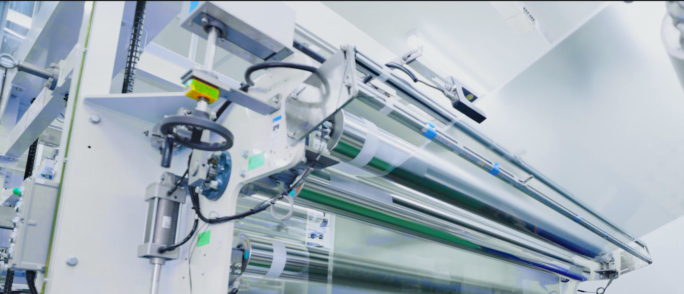

Nano Cloaking Film Coating
Nano Cloaking Film cutting
Nano Cloaking Film Testing
Cloaking Film Related Questions
To ensure success for your project, please review the 5 steps below. You can also view the overview video .
Any questions, please contact info@wingofilms.com
STEP 1:VALIDATE
The most important step in considering Cloaking film for your project is making sure that it is compatible with your displays and if so, in what orientation the film will need to be installed.Because,it is limited in its ability to cloak some types of displays. It is designed to work with LED screens 40” wider. Displays smaller than this dimension may or may not cloak. Also, it will not cloak most touchscreen,phone screens and other smaller devices.
view the videos
STEP2:CONSIDER
When considering cloaking film for your space, there are a few things to keep in mind:it can change opacity depending on the viewing angle; it will not be fully opaque in all circumstances. The worst case scenarios are when the viewer is very close to the glass and viewing at an extreme angle. The addition of Graphic can help alleviate this issue.To test, place the sample in several locations on the glass and note the appearance.
